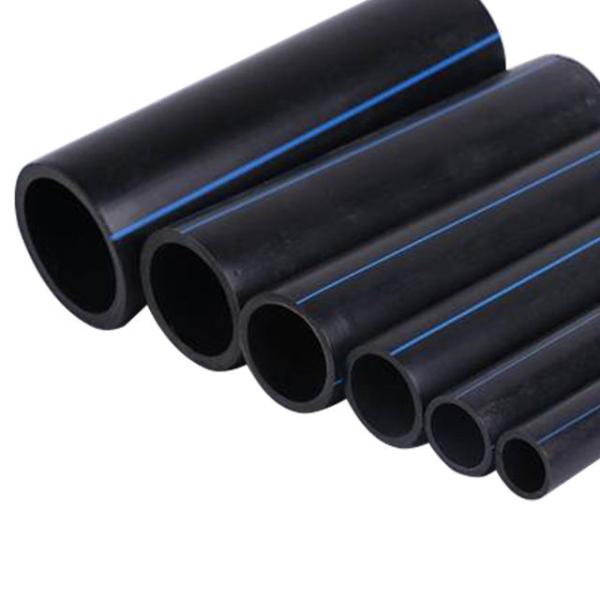

PE100 High Density Water Supply HDPE Pipe 1 Inch Black Plastic Water Pipe

Qingdao Kaishengda Industry & Trade Co., Ltd.
Contact Now
    Buy cheap PE100 High Density Water Supply HDPE Pipe 1 Inch Black Plastic Water Pipe from wholesalers

    Buy cheap PE100 High Density Water Supply HDPE Pipe 1 Inch Black Plastic Water Pipe from wholesalers
    • Buy cheap PE100 High Density Water Supply HDPE Pipe 1 Inch Black Plastic Water Pipe from wholesalers
    • Buy cheap PE100 High Density Water Supply HDPE Pipe 1 Inch Black Plastic Water Pipe from wholesalers
    • Buy cheap PE100 High Density Water Supply HDPE Pipe 1 Inch Black Plastic Water Pipe from wholesalers
    • Buy cheap PE100 High Density Water Supply HDPE Pipe 1 Inch Black Plastic Water Pipe from wholesalers
    • Buy cheap PE100 High Density Water Supply HDPE Pipe 1 Inch Black Plastic Water Pipe from wholesalers
    • Buy cheap PE100 High Density Water Supply HDPE Pipe 1 Inch Black Plastic Water Pipe from wholesalers

    PE100 High Density Water Supply HDPE Pipe 1 Inch Black Plastic Water Pipe

    Ask Lasest Price
    Brand Name : KDS
    Model Number : OEM&ODM
    Price : Please contact
    Payment Terms : T/T, D/P, D/A, L/C
    Supply Ability : 50000 Piece/Pieces per Day
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    PE100 High Density Water Supply HDPE Pipe 1 Inch Black Plastic Water Pipe

    Products Description
    Hot sell PE100 high density polyethylene pipe HDPE pipe for water supply
    PE/HDPE Pipes Advantage 1.Our HDPE pipe for water and sewer is manufactured for excellent performance and a long life expectancy.
    2.Its butt-fused joints eliminate potential leak points, common at 10 to 20 feet with ductile iron pipe, for a zero leak rate.
    3.Highly resistant to corrosion and weather, recent studies conclude it will last at least 50 years.
    4.Its light weight and flexibility make it easy to install, eliminate the need for fittings required with directional changes, and make it highly suitable for use in earthquake prone areas.
    5.Its high-strength walls give it the highest PE pressure rating, outstanding resistance to SCG and increased resistance to rapid crack propagation.
    6.The increased working stress rating of high-performance PE resin material makes it a superior choice over steel or ductile iron pipe, especially for the large diameter pipe sizes.
    Product Name
    PE/HDPE Water Supply Pipe
    Material
    PE/HDPE
    Color
    Black with bule line
    Standard
    GB/T13663-2000,ISO 4427-1:2007
    Specification
    20-1200mm
    Pressure
    0.6MPa SDR26,0.8MPa SDR21,1MPa SDR17,1.25MPa SDR 13.6,1.6MPa SDR 11
    Main application
    Water Supplying and Draining
    OEM and ODM
    YES
    More Details
    Pressure
    PN0.6MPa SDR 26
    PN0.8MPa SDR 21
    PN1.0MPa SDR 17
    PN1.25MPa SDR 13.6
    PN1.6MPa SDR 11
    OD
    Thickness
    Thickness
    Thickness
    Thickness
    Thickness
    (mm)
    (mm)
    (mm)
    (mm)
    (mm)
    (mm)
    63
    3.7
    4.7
    5.8
    75
    4.5
    5.6
    6.8
    90
    4.3
    5.4
    6.7
    8.2
    110
    4.2
    5.3
    6.6
    8.1
    10
    125
    4.8
    6
    7.4
    9.2
    11.4
    140
    5.4
    6.7
    8.3
    10.3
    12.7
    160
    6.2
    7.7
    9.5
    11.8
    14.6
    180
    6.9
    8.6
    10.7
    13.3
    16.4
    200
    7.7
    9.6
    11.9
    14.7
    18.2
    225
    8.6
    10.8
    13.4
    16.6
    20.5
    250
    9.6
    11.9
    14.8
    18.4
    22.7
    280
    10.7
    13.4
    16.6
    20.6
    25.4
    315
    12.1
    15
    18.7
    23.2
    28.6
    355
    13.6
    16.9
    21.1
    26.1
    32.2
    400
    15.3
    19.1
    23.7
    29.4
    36.3
    450
    17.2
    21.5
    26.7
    33.1
    40.9
    500
    19.1
    23.9
    29.7
    36.8
    45.4
    560
    21.4
    26.7
    33.2
    41.2
    50.8
    630
    24.1
    30
    37.4
    46.3
    57.2
    710
    27.2
    33.9
    42.1
    52.2
    800
    30.6
    38.1
    47.4
    58.8
    900
    34.4
    42.9
    53.3
    1000
    38.2
    47.7
    59.3
    1200
    45.9
    57.2
